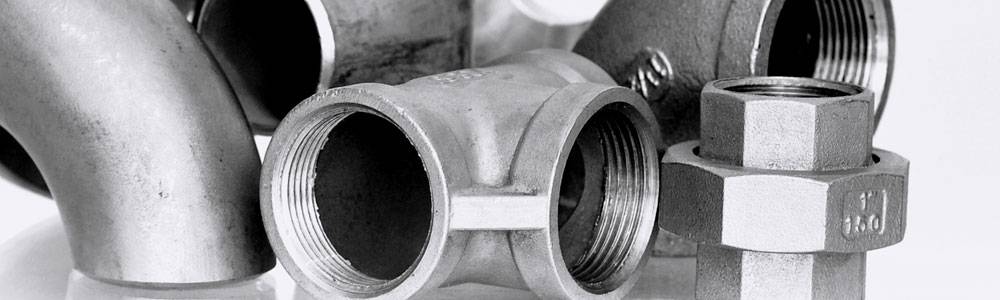

Stainless Steel 317L Forged Fittings - Manufacturer, Supplier

Stainless Steel 317L Threaded Fittings Supplier Mumbai, ASTM A182

Piyush Steel manufactures Stainless Steel 317L Threaded Fittings, a low-carbon austenitic pipe fittings utilized in threaded piping systems for aggressive chemical and industrial applications. UNS S31703 (minimum 3% molybdenum) exhibits better pitting and crevice corrosion resistance than SS 316L, especially in chloride-rich media and acid process streams.

The 0.03% carbon prevents carbide precipitation during welding and ensures corrosion resistance without post-weld heat treatment. The alloy is resistant to oxidation under thermal cycling and retains strength at elevated temperatures. Fittings cover 1/8" NB to 4" NB across Class 2000, 3000, and 6000 pressure ratings.

Product description-
Alloy 317L can be welded using various standard welding process like resistance as well as arc welding. They can be machined by making use of slow feeds, adequate cut depth, and speed, this decreases the machining cost as well as time. As this grade shows good machinability thus it is easier to maintain the sturdy design. Alloy 317 shows elevated cold working rates. To get the accurate dimensions as well as surface finish there is induced industrial machining process.
Alloy 317L contains the molybdenum content and has the austenitic structure because of the presence of carbon content. Also, the presence of nickel and chromium are responsible for its increased corrosion resistance even in reducing atmosphere. Carbon content provides grain boundary precipitation resistance as well as sensitization. This alloy is non-magnetic under annealing process, but when cold worked it becomes magnetic in nature. It also provides other feature like a high creep, tensile as well as stress to rupture features.
Forging process provides consistency of structure and composition. This process is responsible for grain refinement along with the thermal process. This process makes the structure of forged fitting refined in terms of toughness and shears. The structure of the fitting becomes stronger due to the forging process. Also, this process eliminated blow holes, porosity as well as shrinkages.
We make this product in many dimensions, designations, specifications and standards as per the need of our clients. The product which we make go through a sequential process which makes the product of high quality and offers all the features as told earlier. These stainless steel 317L socketweld forged fittings which we produce also goes through the testing process.
In the testing process, we make each and every product to go through some tests like the hardness test, PMI test, IGC test, tensile test, etc to check if the product we manufactured is suitable for use in various application and are able to work in a different environment. Also, testing allows us to find out errors and damages present in the product and so, we remove these errors and make the products of good quality.
Also, inspection is called upon to further check that manufactured product fits the industrials standards or not. Usually, the third party carries out the inspection process where they visually and by hand examine the manufactured product.
Finally, we pack the product in strong packaging material very carefully. We pack Stainless steel 317L socketweld forged fittingsin durable packaging material like boxes, wooden cases, and environmentally friendly packages. This helps prevent dust particles and dirt particles from ruining the quality of the product. Also packed material remains safe from external damages. We usually deliver the product within 10-15 days however if the product is not in stock then it will take time to make it and deliver it.

We SS 1.4438 Forged Fittings to both national and international clients.

Stainless Steel 317L Union, ASME SA 182 SS 317L Bushing, Stainless Steel 317L High Pressure Forged Fittings, SS 317L Forged Equal Tee, SS 317L Forged Cross, Stainless Steel 317L Forged Cap Stockist, SUS 317L Forged Fittings Exporter in India.

SS 317L Forged Fittings at Best Price, SS 317L Forged Fittings, 317L SS Industrial Forged Fittings Distributors, SS DIN 1.4438 Pipe Nipple, Stainless Steel 317L 90" Socket weld Elbow, 317L Stainless Steel Socket weld Elbow Manufacturer in India.

Stainless Steel 317L Forged Fittings Price List

Request the latest Stainless Steel 317L Forged Fittings Price List. Please Call +91 22 23867540 or Send an Email to [email protected] for Stainless Steel UNS S31703, 1.4438, SUS 317L Forged Fittings Ready stock information and updated price list.

ASME SA182 317L Stainless Steel Forged Fittings Equivalent Grades

Stainless Steel 317L Forged Fittings Forms in Stock

• Stainless Steel 317L Forged Elbow
• SS 317L Socket weld Elbow
• Stainless Steel 317L Threaded Elbow
• SS 317L 90 deg. Threaded Elbow
• SS 317L 1D Socket weld Elbow
• SUS 317L 45 deg. Socket weld Elbow
• UNS S31703 Forged Elbow
• Stainless Steel 1.4438 Forged Elbow
• ANSI B16.11 SS 317L Socket weld Elbow

• Stainless Steel 317L Forged Tee
• SS 317L Socket weld Tee
• Stainless Steel 317L Threaded Tee
• SS 317L Threaded Equal Tees
• SS 317L Socket weld Equal Tee
• SUS 317L Socket weld Unequal Tee
• UNS S31703 Forged Tee
• Stainless Steel 1.4438 Reducing Tee
• ANSI B16.11 SS 317L Socket weld Tees

• Stainless Steel 317L Forged Cross
• SS 317L Socket weld Cross
• Stainless Steel 317L Threaded Cross
• SS 317L Threaded Equal Cross
• SS 317L Socket weld Equal Cross
• SUS 317L Socket weld Unequal Cross
• UNS S31703 Forged Cross
• Stainless Steel 1.4438 Reducing Cross
• ANSI B16.11 SS 317L Socket weld Cross

• Stainless Steel 317L Full Coupling
• SS 317L Socket weld Full Coupling
• SS 317L Threaded Full Coupling
• SS 317L Socket weld Coupling
• SS 317L Threaded Coupling
• UNS S31703 Forged Full Coupling
• Stainless Steel 1.4438 Full Coupling
• ANSI B16.11 SS 317L Full Coupling

• Stainless Steel 317L Half Coupling
• SS 317L Socket weld Half Coupling
• SS 317L Threaded Half Coupling
• SS 317L Socket weld Coupling
• SS 317L Threaded Coupling
• UNS S31703 Forged Half Coupling
• Stainless Steel 1.4438 Half Coupling
• ANSI B16.11 SS 317L Half Coupling

• Stainless Steel 317L Forged Cap
• SS 317L Socket weld Pipe Cap
• SS 317L Threaded Pipe Cap
• SS 317L Socket weld Cap
• SS 317L Threaded Cap
• UNS S31703 Forged Pipe End Cap
• Stainless Steel 1.4438 Pipe Cap
• ANSI B16.11 SS 317L Pipe Cap

• Stainless Steel 317L Forged Union
• SS 317L Socket weld Union
• SS 317L Threaded Union
• SS 317L Forged Socket weld Union
• SS 317L Forged Threaded Union
• UNS S31703 Forged Union
• Stainless Steel 1.4438 Union
• ANSI B16.11 SS 317L Union

• Stainless Steel 317L Forged Bushing
• SS 317L Hex Head Bushing
• SS 317L Threaded Bushing
• SS 317L Bushing
• SS 317L Forged Threaded Bushing
• UNS S31703 Forged Bushing
• Stainless Steel 1.4438 Bushing
• ANSI B16.11 SS 317L Bushing

• Stainless Steel 317L Forged Nipple
• SS 317L Socket weld Pipe Nipple
• SS 317L Threaded Pipe Nipple
• SS 317L Forged Swage Nipple
• SS 317L Forged Threaded Nipple
• UNS S31703 Forged Pipe Nipple
• Stainless Steel 1.4438 Pipe Nipple
• ANSI B16.11 SS 317L Hex Nipple

Specifications of Stainless Steel 317L Threaded Fittings

Piyush Steel produces SS 317L Threaded Fittings to the following technical standards, dimensions, and configurations:

Types of Stainless Steel 317L Threaded Fittings

We provide the following types of SS 317L threaded fittings at Piyush Steel.

• SS 317L Threaded Elbow redirects flow at 45° or 90°. Short-radius versions suit tight spaces, while long-radius elbows help reduce turbulence in high-velocity lines.
• SS 317L Threaded Tee splits or combines flow at three-way junctions. Equal and reducing configurations are available.
• SS 317L Threaded Cross manages four-directional flow splits at a single distribution point.
• SS 317L Threaded Coupling joins two pipe sections of equal or differing bore in a single connection.
• SS 317L Threaded Union allows pipe disconnection without rotating either section, simplifying maintenance in process lines.
• SS 317L Threaded Bushing steps down from a larger female thread to a smaller male thread in one compact piece.
• SS 317L Threaded Cap terminates an open pipe end or closes off an unused branch permanently.
• SS 317L Threaded Plug seals a female-threaded fitting or valve port. Its hex body allows wrench installation.
• SS 317L Hex Nipple connects two female-threaded components using male threads on both ends.
• SS 317L Street Elbow provides a direction change using one male and one female thread, eliminating the need for an additional fitting.

Material Grades and Equivalent Standards

317L carries UNS designation S31703 and falls under ASTM A182 grade F317L for forged fittings. The European equivalent is EN 1.4438. Molybdenum content is between 3.0% and 4.0%, compared with 2.0% to 3.0% in SS 316L, raising the critical pitting temperature and broadening tolerance to reducing acids and chloride media. Carbon at 0.03% maximum makes the alloy suitable for welded assemblies where low-carbon stainless steel is required.

Applications of Stainless Steel 317L Threaded Fittings

Chemical processing plants use 317L fittings in lines carrying sulfuric acid, phosphoric acid, and halide streams where higher corrosion resistance is required. They are employed in petrochemical plants in condenser and gas-treating circuits exposed to concentrated chlorides. Oil and gas installations specify 317L for sour service and gas sweetening piping where H2S and CO2 can attack standard austenitic grades.

Marine and offshore platforms use them for seawater cooling, ballast, and chemical injection lines. Pharmaceutical manufacturers prefer 317L for applications requiring low-carbon stainless steel and good corrosion resistance during cleaning cycles. Pulp and paper mills, food processors, power generation condensate systems, and high-chloride water treatment facilities also use 317L fittings where enhanced molybdenum content provides additional corrosion resistance.

Why Choose Piyush Steel for SS 317L Threaded Fittings

Piyush Steel has produced and exported tubular metal products since 1983 under ISO 9001:2008 quality management. Each batch is subjected to chemical composition analysis, dimensional checks in accordance with applicable standards, and testing before shipment. Material Test Certificates tracing heat number, chemical composition, and mechanical properties are supplied with every order.

Stock spans 1/8" NB to 4" NB in Class 2000, 3000, and 6000. Custom sizes and thread forms are available on confirmed lead times. Request a quote with your grade, size, pressure class, and thread standard for a response within 24 hours.

Mechanical Properties of SS 317L / S31703 / 1.4438 / SUS 317L High Pressure Forged Fittings

Markings On The Stainless Steel 317L Forged Fittings

The full identification of the forged fittings should be continuously marked down its whole length, including :

• Rating Designation
• Material Designation
• Specification Grade
• Class designation - 2000, 3000, 6000, or 9000
• Manufacturer's Name or Symbol

Stainless Steel 317L Forged Fittings Application Industries

• Petrochemical Industry
• Chemical Industry
• Oil and Gas Industry
• Pulp & Paper Indusry
• Power Plant Industry
• Food Processing Industry
• Pharmaceuticals Industry
• Energy Industry
• Aerospace Industry
